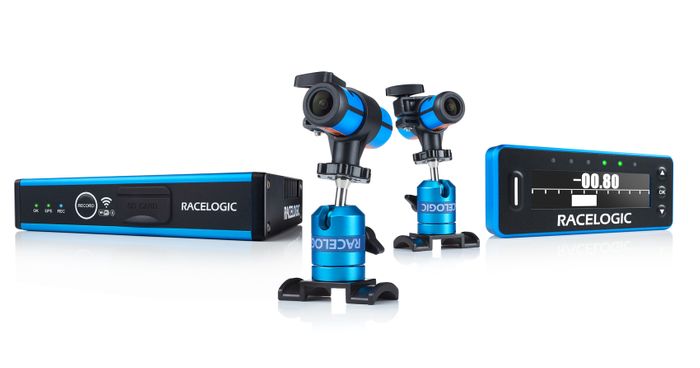

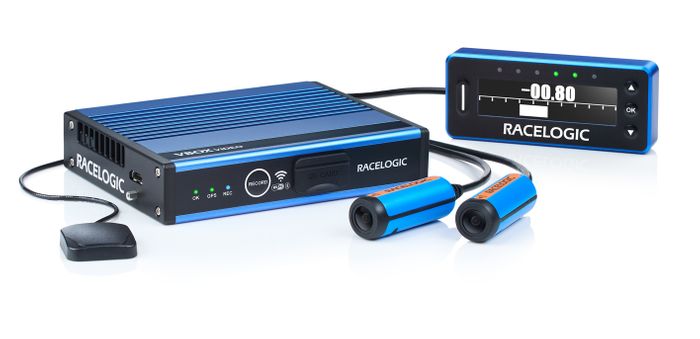

VBOX Video HD2
)
)
)
)
)
)
VBOX Video HD2 is the ultimate in video data logging for those who want to achieve better lap times and greater
consistency at the wheel. The system features 2 camera inputs, allowing for a main view with embedded picture-in
picture. The lenses are wide angle, ensuring that every moment of track action is captured in stunning high
definition. Video is recorded at 30 frames per second to SD card or USB flash drive.
The HDMI output allows you to stream real-time
video and audio to an HDMI compatible monitor,
recorder, or streaming device such as LiveUSolo. This
is ideal for live coverage of motorsport events for TV
or social media and provides race teams with the
ability to give instant driver feedback.
An app for Android and iOS devices connects via
the VBOX Video’s inbuilt Wi-Fi to allow fine
tuning of camera orientation, with real-time
camera output being displayed on the mobile
device’s screen.
Graphics are overlaid in real-time and high definition. This
gives the user great scope for fantastic dashboard and
gauge layouts. The graphics are fully customisable, but
several default scenes are available.
By default, the system will start and stop logging according
to GPS speed. With the addition of the video pre-buffer, this
allows every moment of track action – including race starts -
to be captured automatically. An optional remote start/stop
logging switch can be conveniently mounted next to the
driver.
An internal battery allows the current file to be correctly closed should power be lost during recording, ensuring
that no data loss or corruption occurs.
