Real-time visualization of a flow field

ProCap Compact is an innovative digital approach that combines the simplicity and speed of

a smoke probe with the quality of a 3D-measurement scan.

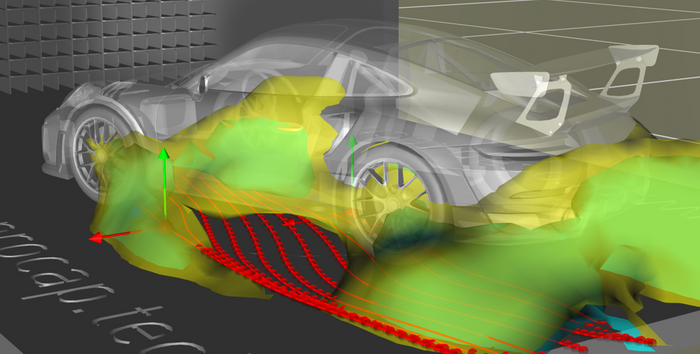

Real-time visualization of a 3D velocity vector and its interpolation to a complete flow field

provides instantaneous understanding of the quality of aerodynamic measurements.

Scan and paint the flow

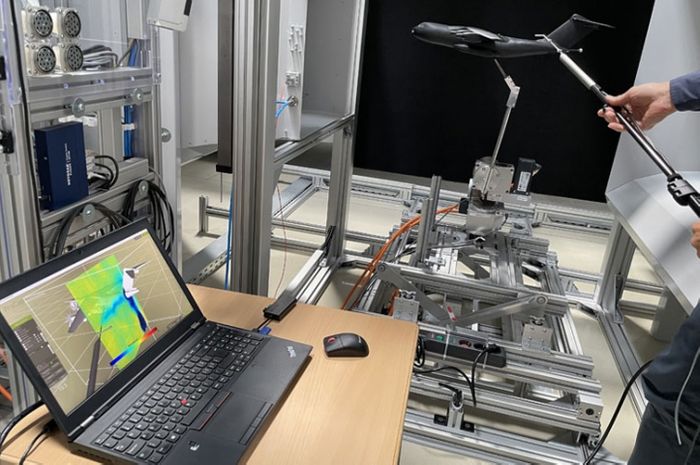

Automated traverse or operator may guide a probe in the flow region of interest. The probe’s

instantaneous position is precisely tracked with a camera system, the measured data is

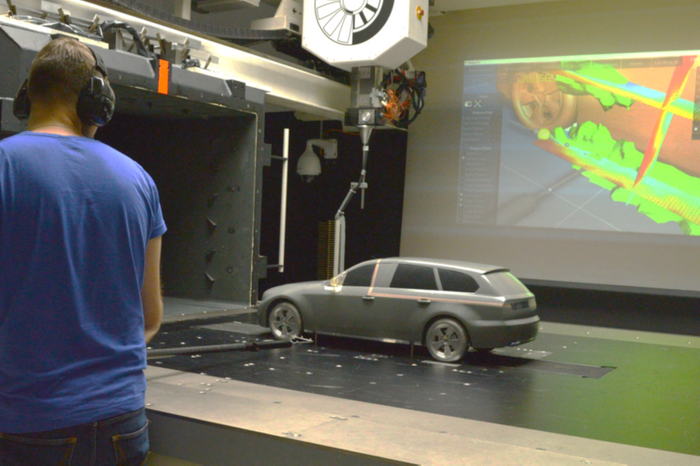

interpolated, and the flow field is instantaneously visualized to the user. This is essentially an

intuitive scan-and-paint approach of the flow in real-time.

Digital approach

ProCap Compact merges data streams from position tracking and flow field measurements,

reduces data, interpolates and predicts the flow field for integrated validation.
