PCAN-MicroMod FD Analog+Digital
)
)
)
)

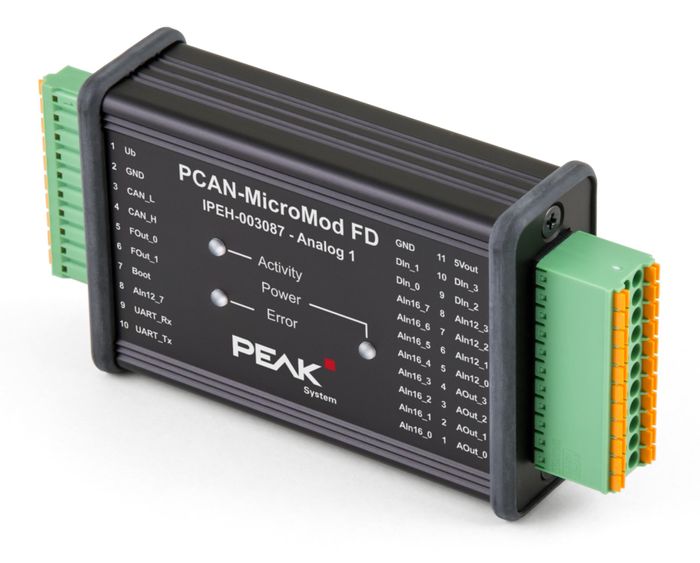

The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements. For the connection of CAN, I/O, and power supply, spring terminal connectors are used. The motherboard PCAN-MicroMod FD Analog 1/Digital 1 and 2 puts the emphasis on analog inputs and outputs, which are provided with appropriate protective circuitry.

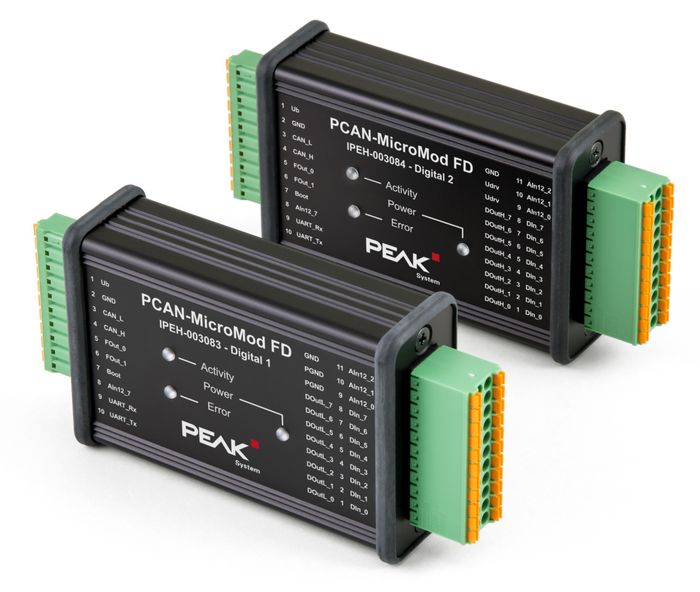

The digital outputs of Digital 1 are equipped with low-side switches and those of Digital 2 with high-side switches.
The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.
The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus.
IPEH-003087 Analog 1
IPEH-003083 PCAN-MicroMod FD Digital 1 (Low-side)
IPEH-003084 PCAN-MicroMod FD Digital 2 (High-side)
