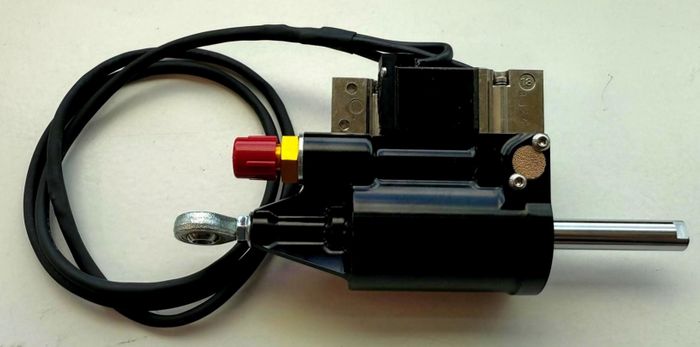

Drag Reduction Actuator - DRS | Pneumatic control by Shiftec
)
Based on proven pneumatic technology, the Shiftec DRS actuators complement the existing range. Our latest version, specifically designed for the 2025 MSV GB3 Single Seater Championship
Drag Reduction Actuator - DRS | Pneumatic control by Shiftec
Based on proven pneumatic technology, the Shiftec DRS actuators complement the existing range. Our latest version, specifically designed for the 2025 MSV GB3 Single Seater Championship, seamlessly integrates with the current mounting hardware and rear wing swan-neck.
This version offers the following capabilities:
Max Force: < 800N
Max Stroke: 28 mm
Max Operating Pressure < 10 Bar
12V Valve Actuation
5V Integrated Position Sensor
Fully MS wiring terminated with Deutsch AS107-35PN
5-Axis machined CNC Aluminium housing
Weight 380g
The Shiftec DRS proves to be versatile, easily paired with Shiftec's pneumatic gear change solutions. Driven by one billet compressor, it ensures a compact, lightweight, and cost-effective solution for your needs. Experience seamless integration and enhanced performance with Shiftec DRS.
